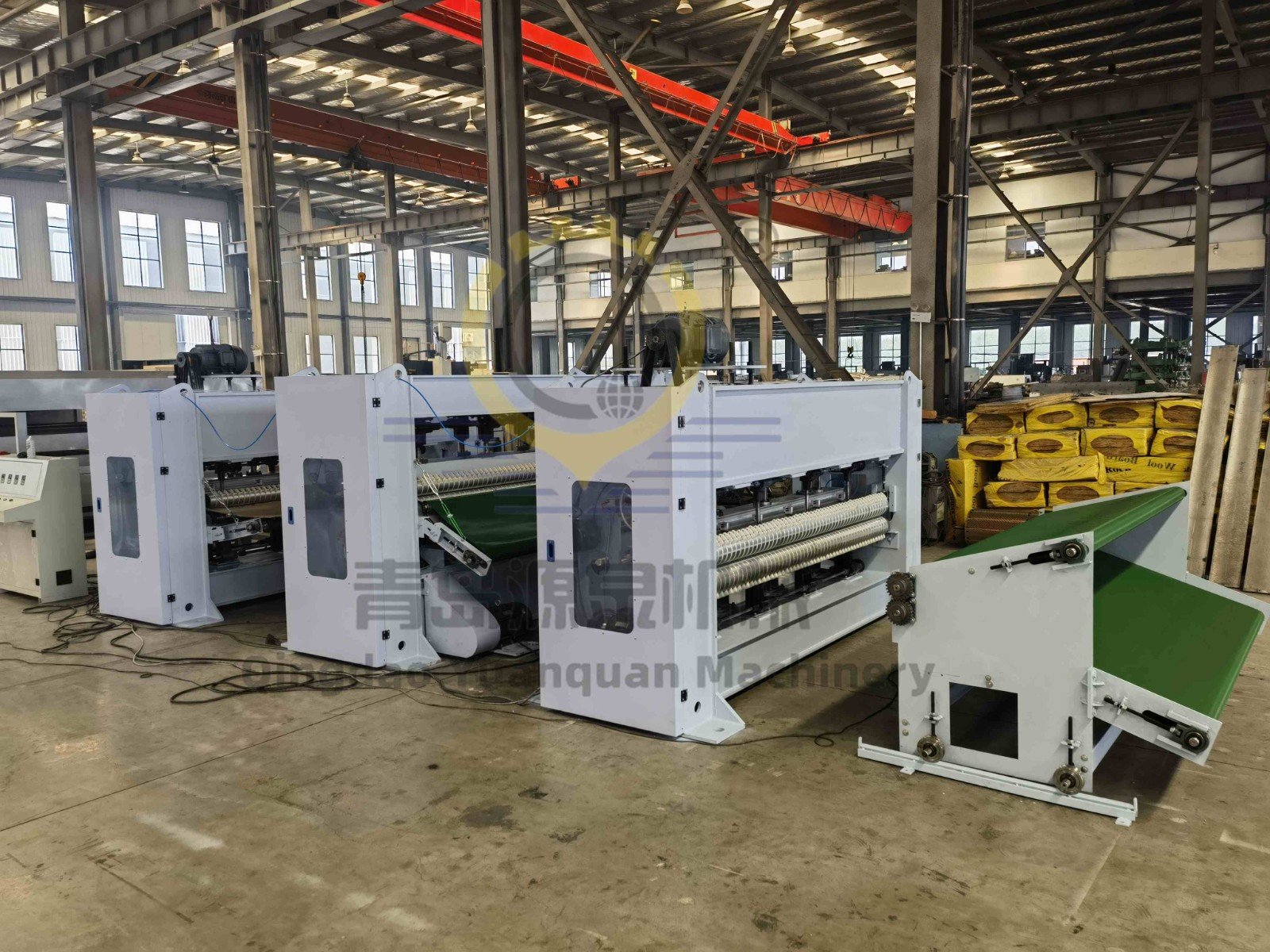

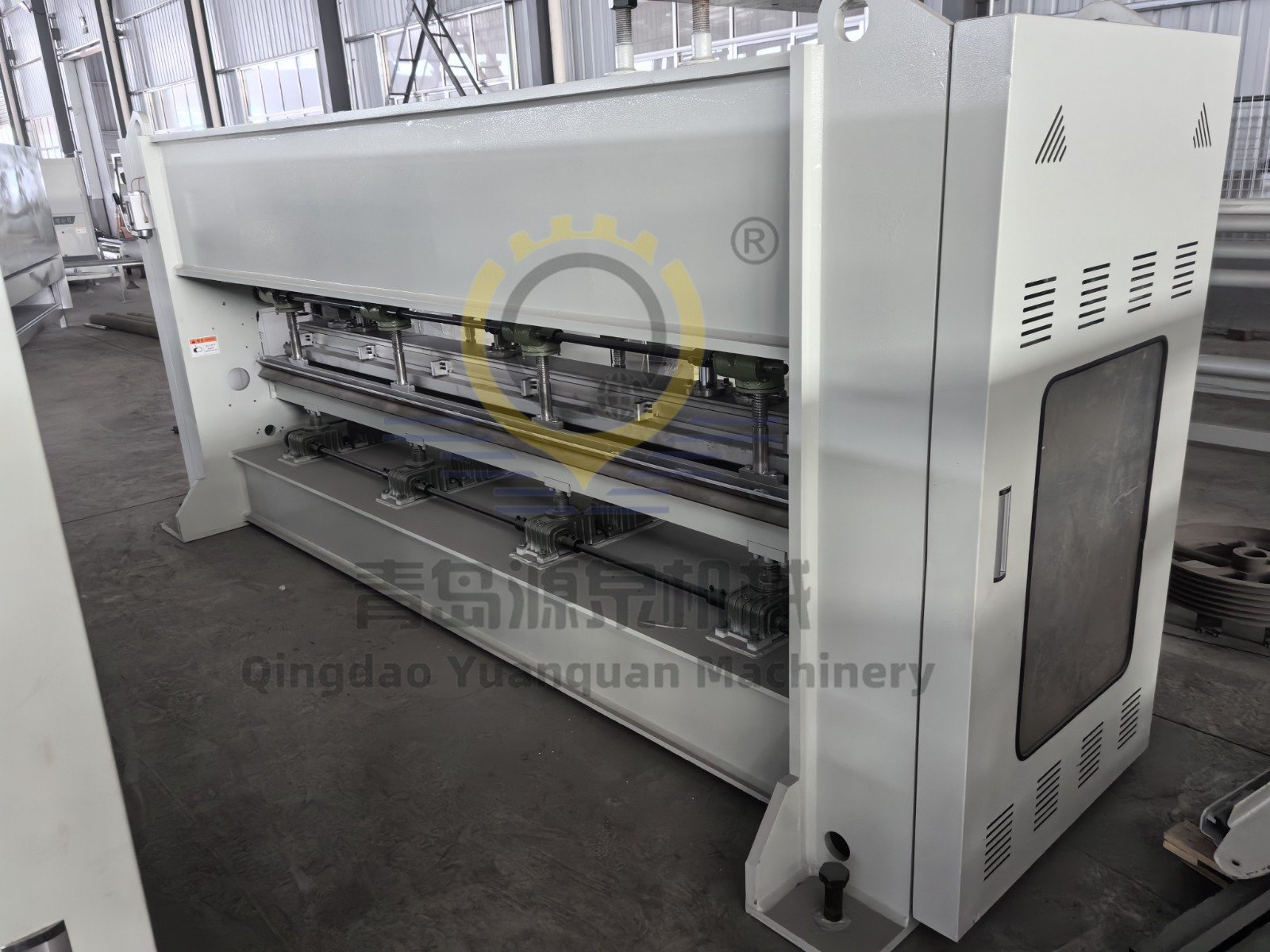

The needle punching machine is connected with the cross lapping machine. The fiber layer conveyed by the cross lapping machine is very fluffy and easy to loose when entering the needle punching machine; After needling by the needle punching machine, the fluffy degree and thickness of the fiber web can meet the quality requirements of non-woven felt.
This machine mainly produces non-woven materials such as needle felt, asphalt felt base material, geotextile, carpet and so on. The machine adopts dynamic balance structure, centralized oil supply, and it is equipped with an oil shortage alarm indicator. The bulkiness and thickness of the fiber web after needle punching can meet the quality requirements of non-woven felt.（Can be customized according to customers'needs.）
Working Width: 1800-6000mm or customized
Single Needle Density:3000-7000PCS/Meter
Double Needle Density:6000-6200PCS/Meter
Power:9-25KW
Output Speed:0.6-8m/min
Needle Frequency: About 400-700 times/min
Needle Stroke: 30-65mm
Main Features:

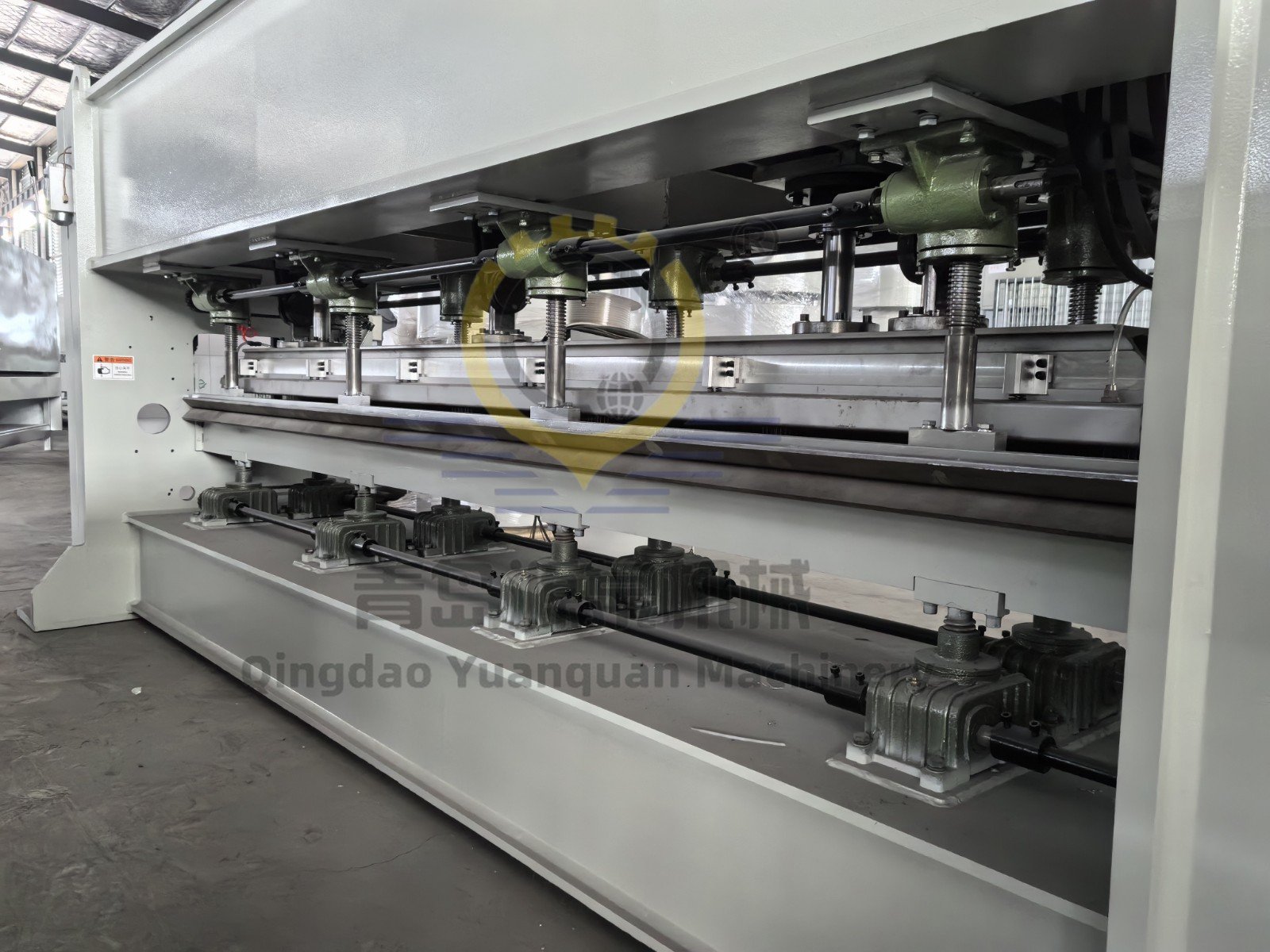

(1)The material is Aluminum Alloy, drilled with computer СNC driller, so that certain the distance between the holes and the vertical between the hole and needle plate. The method of placing needles is decided by the requirement of the products.
(2)Needle density: 4500 pieces/m × effective length 4600mm width 250mm
(3)Airbag locking, stripping plate and bottom needle plate needle hole ￠4.8mm
(4)Top needle plate needle hole ￠1.83, material aluminum-magnesium alloy plate (PU leather coating).
Stripping plate and bottom needle plate material manganese steel plate, bottom needle plate back cone hole and electroplating
