High Quality Energy Saving Type Three Layers Oven

Unit Machine

.01

Energy Saving Type Three Layes Oven

Heating mode of this soft wadding oven is by one burner or electric heating, dual-purpose oven can be used. The circulating fan penetrates the hot air through the air duct, blows it down and sucks it up. Achieve the maximum energy-saving effect.

Product Introduction:

This soft wadding oven is mainly for producing soft wadding product, like glue-free product, silk-like product, etc., which is widely used in clothing, embroidery, bedding, furniture, travel products, etc. As a dual-purpose energy-saving oven, it can be heated by burner (one set) or electric heating. The circulating fan penetrates the hot air through the air duct and blows it up and down to achieve the maximum energy-saving. Moreover, the three-layer mesh belt is separate transmission, each main drive adopts frequency conversion control. (Can be customized)

Main Specifications and Parameters:

Working Width:2800mm-4860mm Or customized

Weight: About 8000-10000KG

Working Speed:3-20m/min

Conveyor belt (customized):Teflon mesh belt

Temperature control range in the oven box:≤160-200℃

Heating Mode: Natural Gas, liquefied gas, diesel heating or electric heating.

Total Power: About170-175 KW

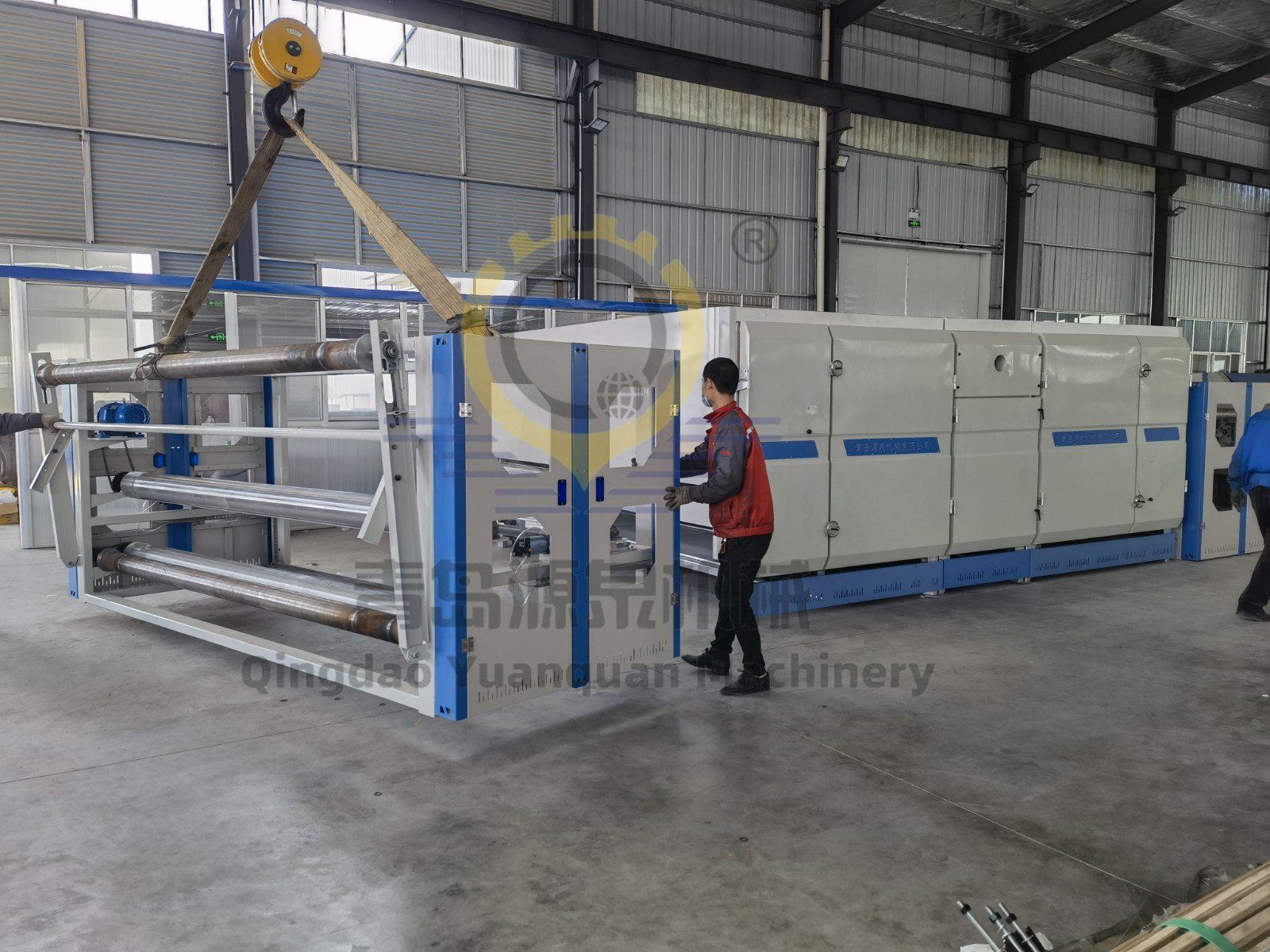

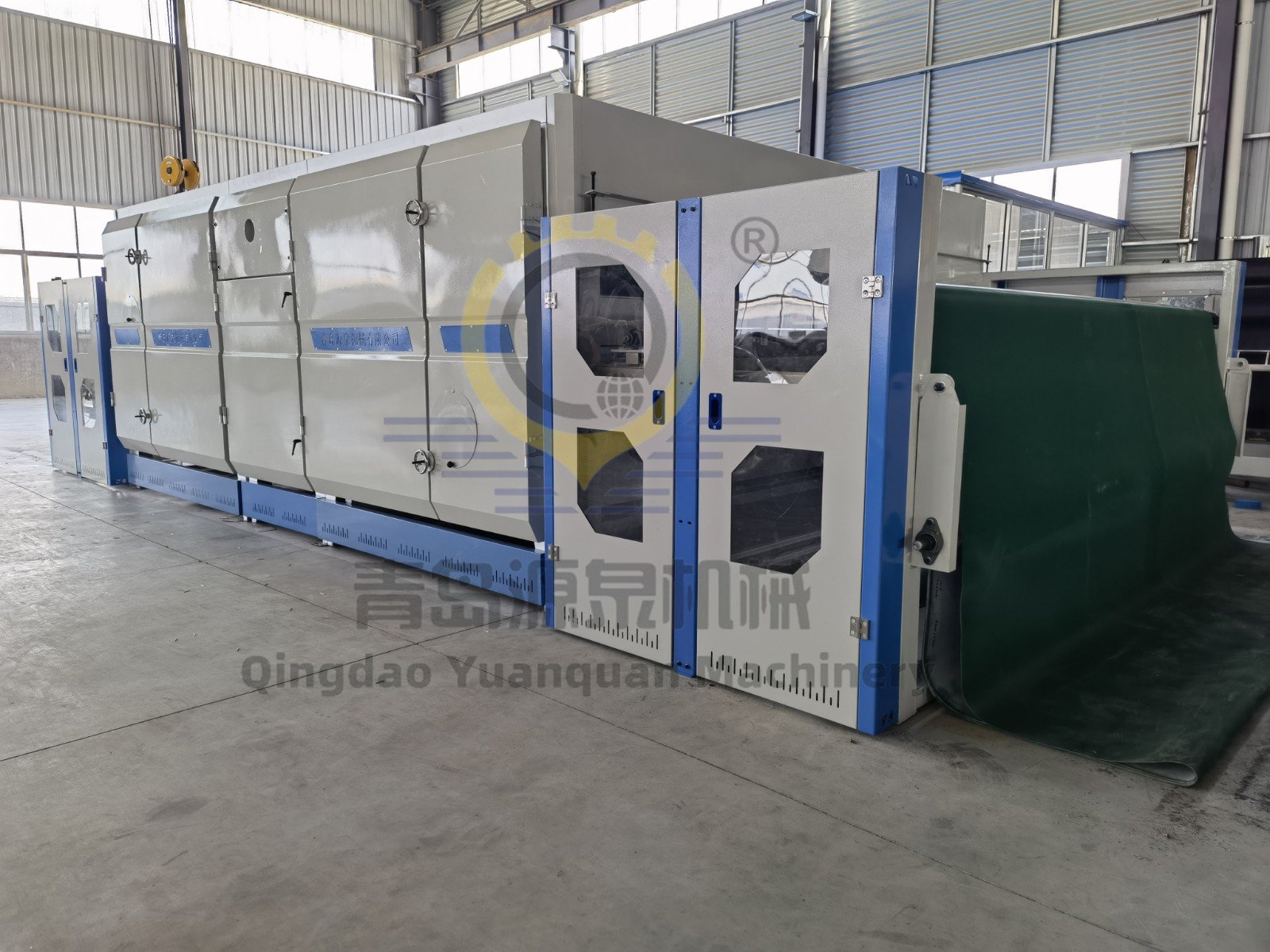

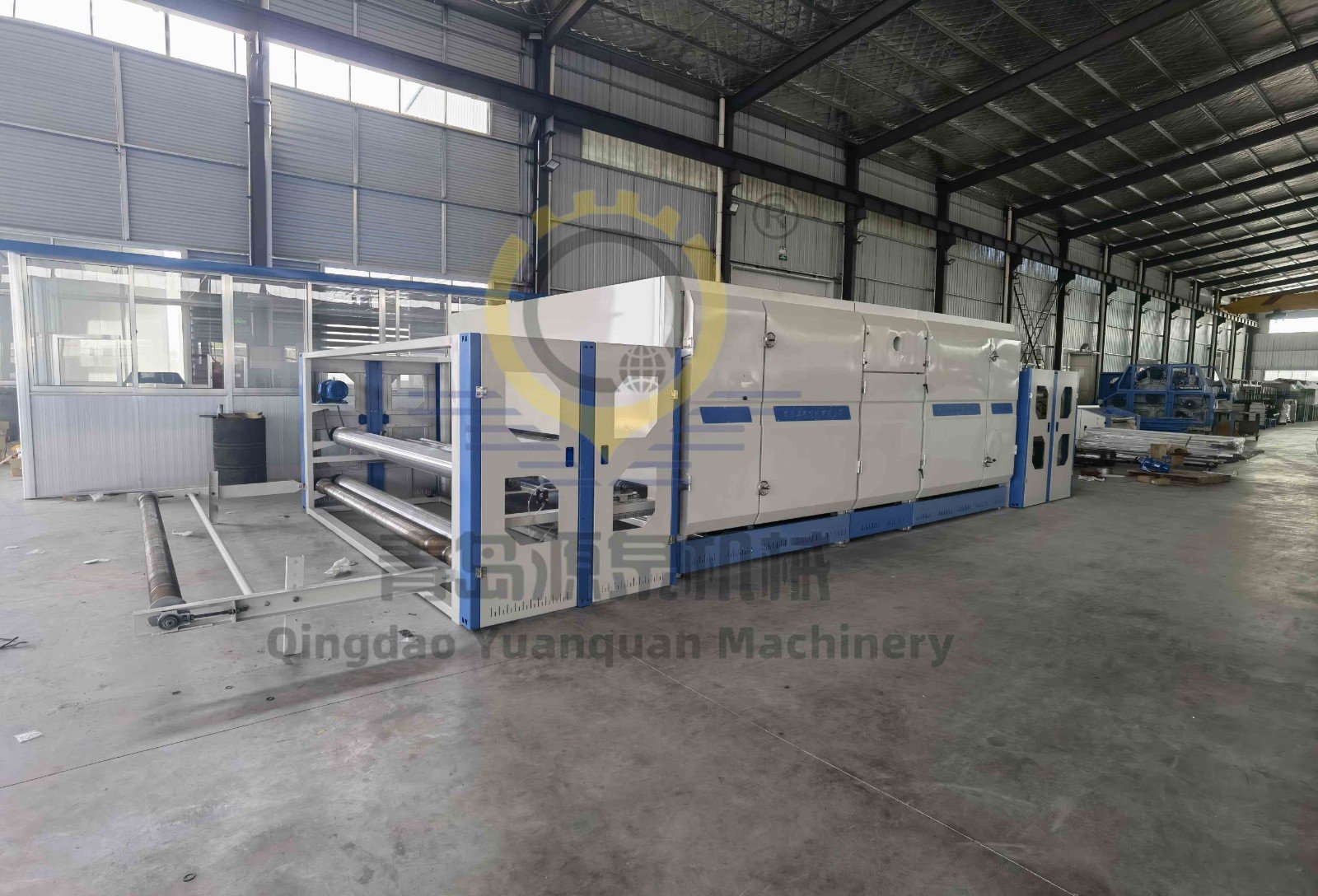

Machine Details:

Main Features：

(1)Heating mode: one burner or electric heating, dual-purpose oven can be used.; The circulating fan penetrates the hot air through the air duct, blows it down and sucks it up; Achieve the maximum energy-saving effect.

(2)The rack is welded with 120mm square pipe and connected with 120mm square pipe; Stable structure.

(3)The transmission mesh roller adopts seamless steel pipe and chrome plating after fine grinding; The pressing roller is made of stainless steel.

(4)Frame with front and rear access curtain; Each 1500mm long, effectively ensuring deviation correction and stable operation of the motor.The three-layer mesh belt drives separately, and each main drive adopts frequency conversion control;
