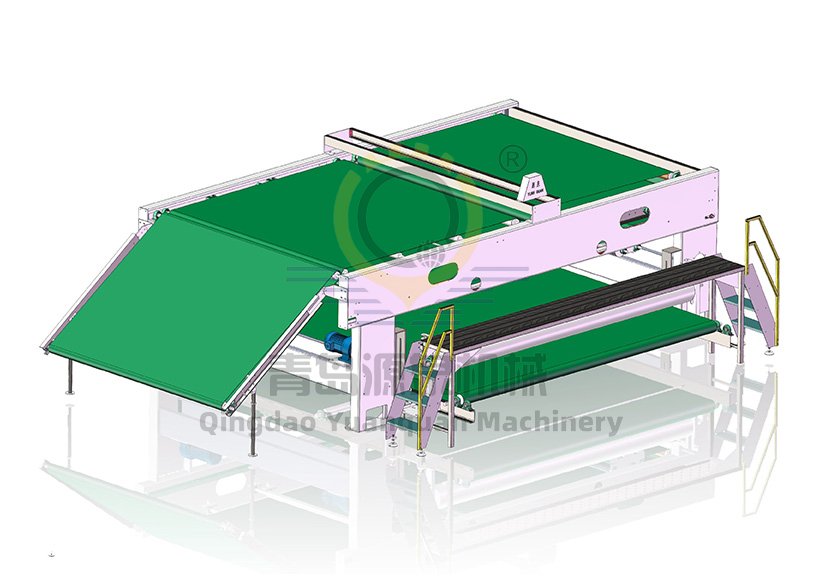

Cross Lapper

The cross lapping machine will fold and plait the webs from carding machine evenly into the required weight and thickness and then to feed the batt to the next procedure.

Product Introduction:

The fiber layer laid by cross lapping has a uniform texture. By changing the direction of the fiber layer, its width and layer thickness are evenly laid, and then transported to the next process after being pressurized. The differential speed compensation between each layer laying curtain can be adjusted to reduce the fiber layer stretch. The reciprocating steering can adjust the buffering force and rotation. (Can be customized)

Main Specifications and Parameters:

Input Width:2000mm-2700mm

Output Width: 3800mm-6000mm

Weight: About 3500-5000KG

Output: 100-600KG/H

Total Power: About 8-9 KW

Machine Details:

Main Features:

(1) The differential speed compensation between each layer laying curtain can be adjusted to reduce the fiber layer stretch. The reciprocating steering can adjust the buffering force and rotation.

(2) It is stable and easy to adjust the bottom curtain up and down. The inclined curtain, ring curtain and bottom curtain have variable frequency speed adjustment and reciprocating frequency multi-stage speed adjustment to make the fiber layer laying more uniform.

(3) The wall panel of the cross lapping machine is made of Q235A,6-8mm steel plate bent, and the frame is supported by 12 # channel steel.

(4) The middle curtain is an anti-static leather curtain, the inclined curtain is a thickened leather curtain with patterns, and the rest are wooden curtains.
