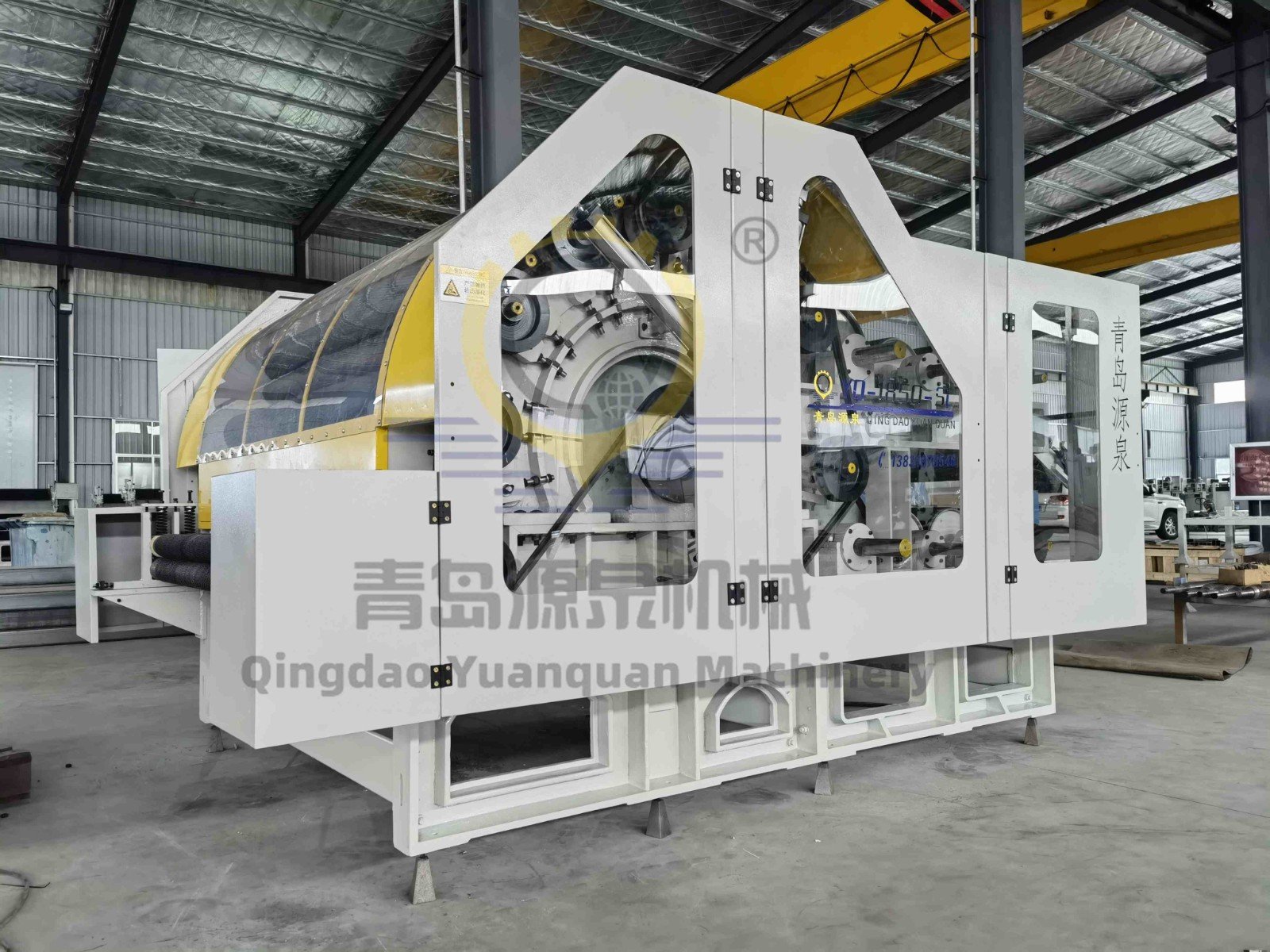

Single Cylinder Double Doffer Carding Machine

Single cylinder double doffer carding machine is also called single cylinder double doffer carder. And it is an important part of the non woven production line. The speed of the working rollers is adjusted according to cylinder and different raw materials, so as to get the best carding effect.

Product Introduction:

The structure of this machine is four feeding rollers, single cylinder and double doffer, which is suitable for polyester, polypropylene and other chemical fibers, also good for carding and netting some natural fibers (sheep wool, alpaca fiber and others). The machine body is made from cast iron with stable structure, sheet metal cover is processed by laser cutting and NC bending which is beautiful and generous.The cover can be lifted and lowered through the air cylinder, which is convenient and safe.

Main Specifications and Parameters:

Working Width:1800mm-2800mm

Weight: About 6000-8000KG

Output: 100-600KG/H

Total Power: About 30-43 KW

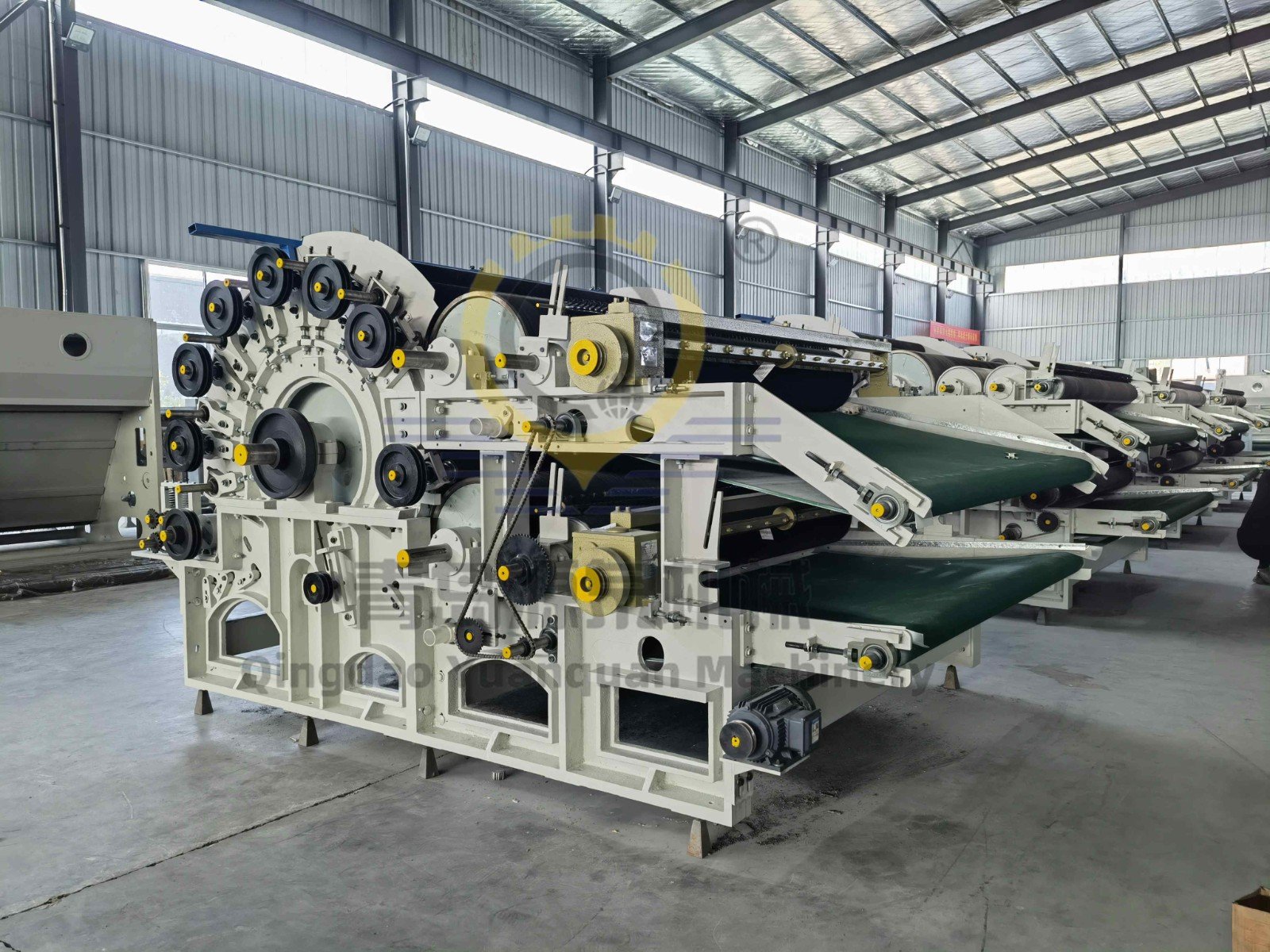

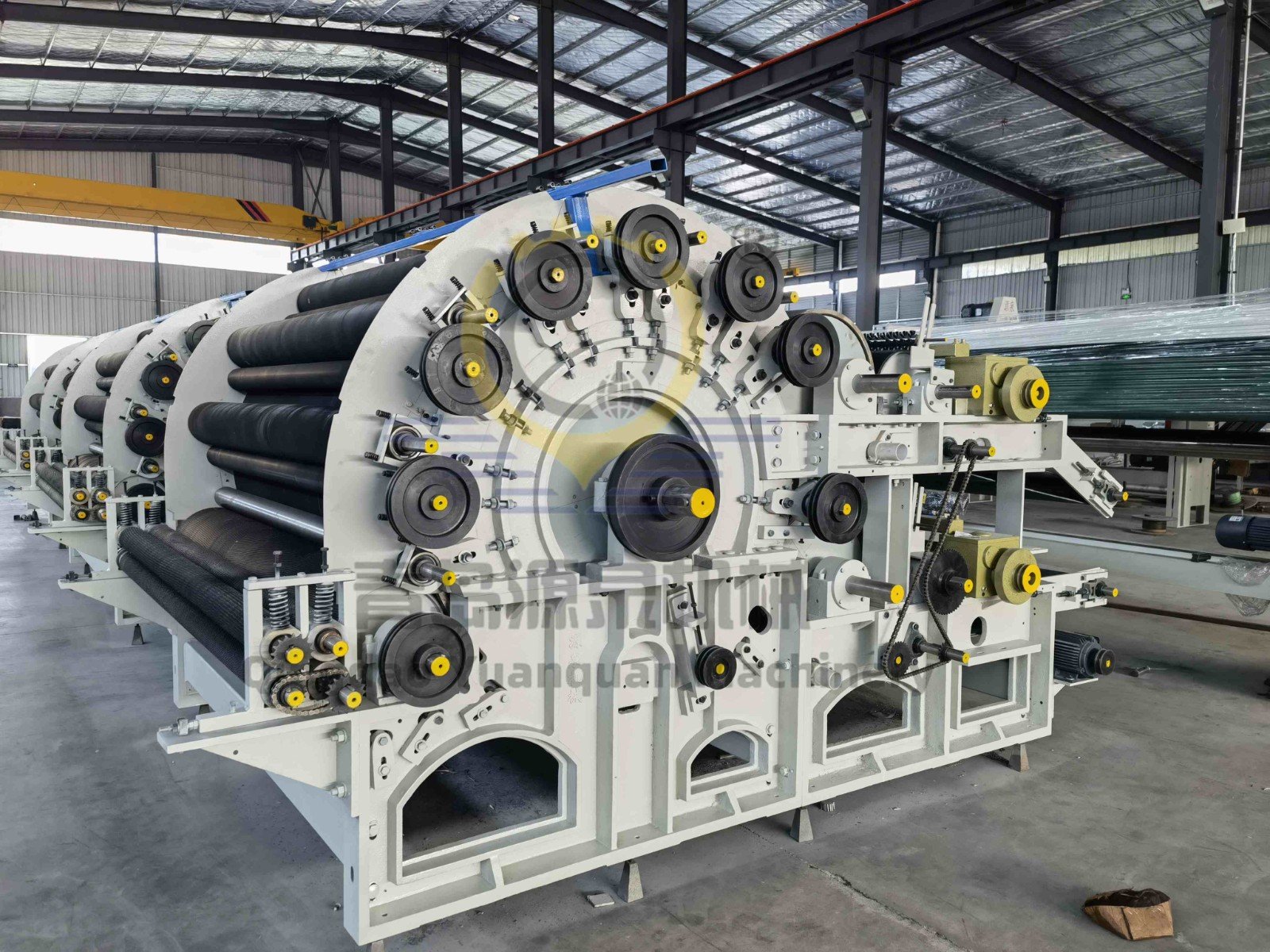

Machine Details:

Main Features:

(1) The machine body is made from cast iron with stable structure, sheet metal cover is processed by laser cutting and NC bending which is beautiful and generous.The cover can be lifted and lowered through the air cylinder, which is convenient and safe；

(2)The roller shaft head is finely turned and polished, and a computer balancing machine is used for static/dynamic balancing, with control adjustment within 0.03-0.05 mm.

(3) The operation is stable and reliable, and the height of base is 600mm, which is convenient for daily maintenance.

(4) The working rollers are controlled by a separate motor, and the speed of the working rollers is adjusted according to cylinder and different raw materials, so as to get the best carding effect.
